71554 SERIES LED AIRCRAFT POSITION LIGHT 14V AND 28V
$325.00

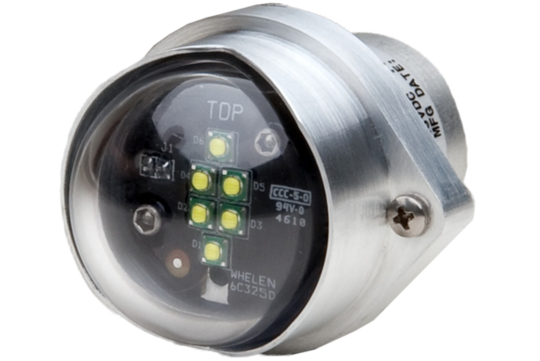

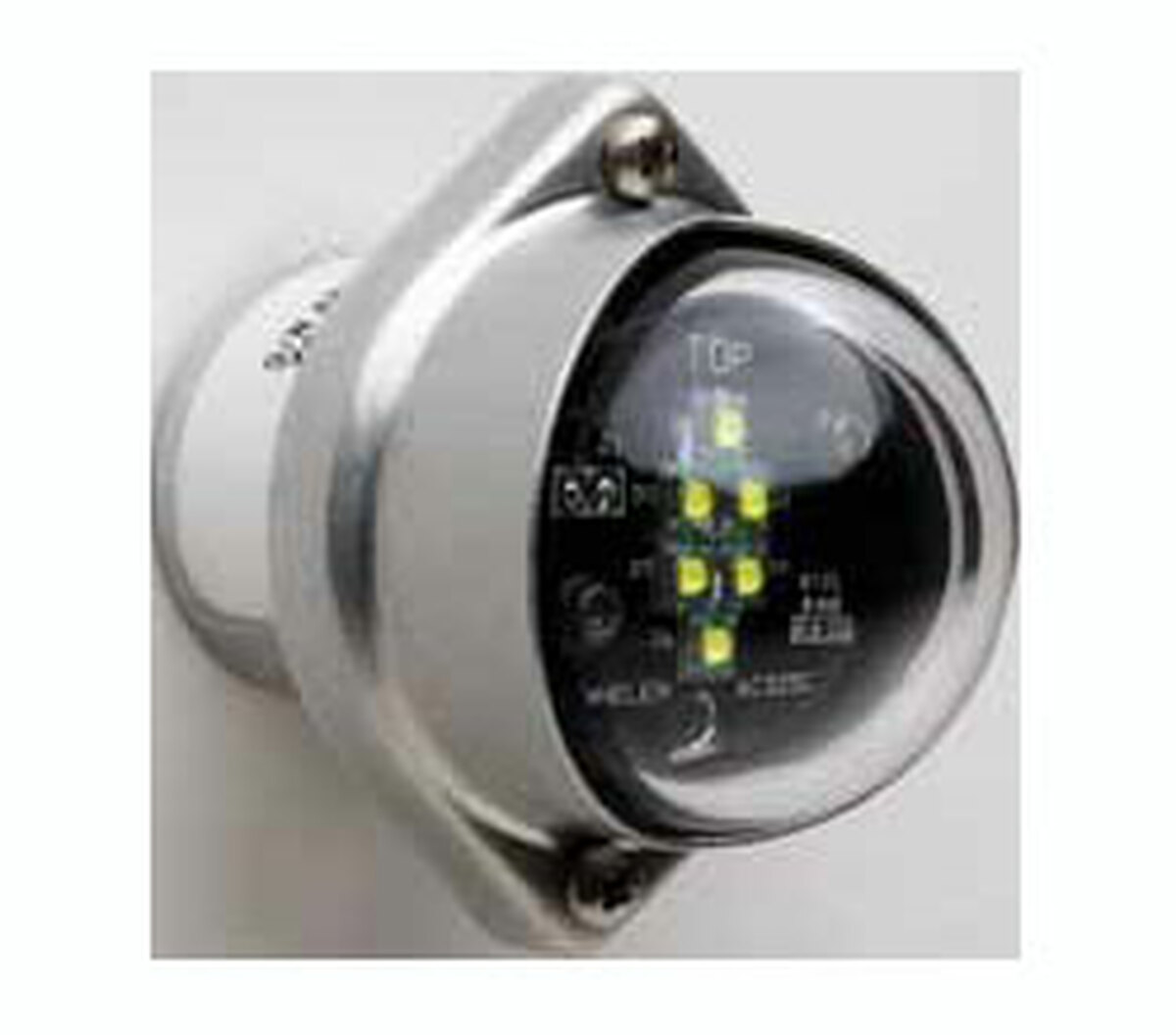

71554 Series in our newest LED Tail Position Light. Exact Footprint for Whelen Models A555A and 71011 Taillights. Available in horizontal or vertical mount. Models -01 and -02 come with flying leads. Model -03 has a pin and a ring terminal for connections.
Description
Tech Specs
- Drawing 71554
- Weight 0.14 lbs
- Dimensions H x W x L Exposed Height: 1.4 (35.56mm) x 1.59 (40.38mm) x 2.07 (52.57mm)
- Current Draw 0.13 Amps @ 28 VDC 0.26 Amps @ 14 VDC
- Available Colors Aviation White
- Lenses Clear Hard-coated Polycarbonate
| Model | Part # | Description | Approvals | |
| 7155401 | 01-0771554-01 | LED Aft POS Light, 28V, Horizontal | FAA TSO-C30c Type III, E-TSO, STC | |
| 7155402 | 01-0771554-02 | LED Aft POS Light, 28V, Vertical | FAA TSO-C30c Type III, E-TSO, STC | |
| 7155403 | 01-0771554-03 | LED Aft POS Light, 28V, Vertical (CESSNA) | FAA TSO-C30c Type III, E-TSO, STC | |
| 7155411 | 01-0771554-11 | LED Aft POS Light, 14V, Horizontal | FAA TSO-C30c Type III, E-TSO, STC | |
| 7155412 | 01-0771554-12 | LED Aft POS Light, 14V, Vertical | FAA TSO-C30c Type III, E-TSO, STC |
Documents
