ORION 650E SERIES EMBEDDED FORWARD POSITION ANTI-COLLISION LIGHTS
$615.00

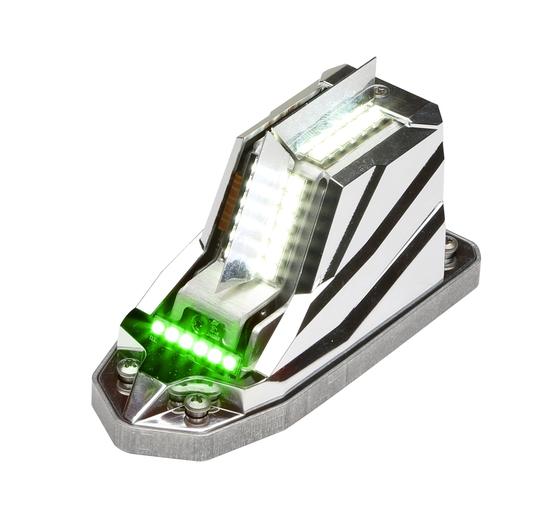

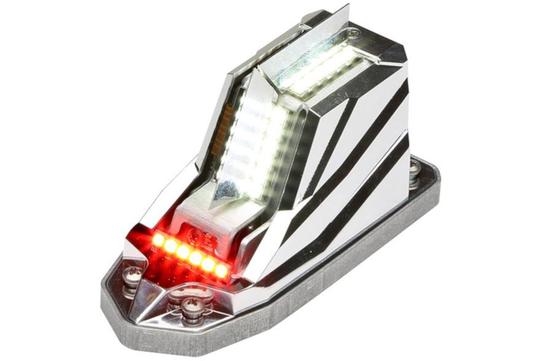

The Orion 650E series products incorporate RED or GREEN forward Position Lights as well as the WHITE flashing Anti-Collision light function. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. Designed to be flush mounted behind a lens, the footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO & STC approved.
Description
Tech Specs
- Drawing 90701
- Weight .27 lbs.
- Current Draw 14V / 28V 0.30 / 0.15 Amp (Position) 0.70 / 0.35 Amp (Anti-Collision)
| Model | Part # | Description | Approvals | |
| OR6501GE | 01-0790701-01 | Embedded Green Position Light/ Anti- Collision Light Wingtip Assembly, 14 VDC | FAA TSO-C96a, TSO-C30c Types II | |
| OR6501RE | 01-0790701-02 | Embedded Red Position Light/ Anti- Collision Light Wingtip Assembly, 14 VDC | FAA TSO-C96a, TSO-C30c Types II | |
| OR6502GE | 01-0790701-11 | Embedded Green Position Light/ Anti- Collision Light Wingtip Assembly, 28 VDC | FAA TSO-C96a, TSO-C30c Types II | |
| OR6502RE | 01-0790701-12 | Embedded Red Position Light/ Anti- Collision Light Wingtip Assembly, 28 VDC | FAA TSO-C96a, TSO-C30c Types II |

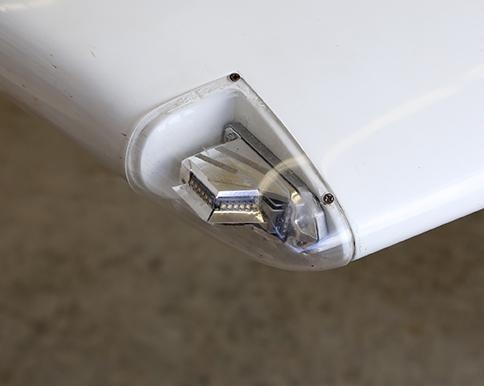

** ANY OF THE ORION™ 650E PRODUCTS ARE TO BE MOUNTED BEHIND A LENS NOT TO BE MOUNTED EXTERNALLY ON AIRCRAFT. **
