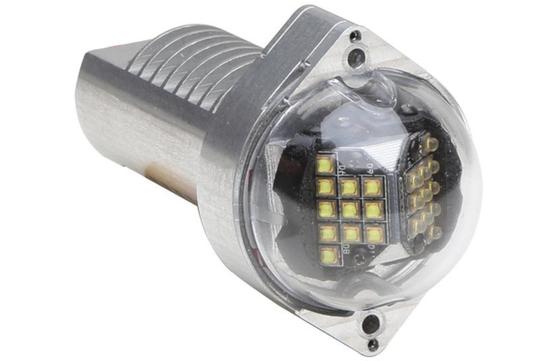

ORION™ 500 SERIES POSITION / ANTI-COLLISION TAIL LIGHTS
$535.00
The Orion™ 500 Series products incorporate both the WHITE flashing Anti-Collision light, and the Tail Position light functions. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO and STC approved.
Description
Tech Specs
- Drawing 71774
- Weight 0.28 lbs.
- Current Draw 14V / 28V 0.20 / 0.10 Amp (Position) 3.8 / 1.9 Amp (Anti-Collision) Average
- Lenses Clear Hardcoated Polycarbonate
| Model | Part # | Description | Approvals |
| OR5001V | 01-0771774V01 |
White Tail Position / Anti-Collision Light Assembly, 14 VDC
|
FAA TSO-C96a Class II / TSO-C30c Type III / STC |
| OR5002V | 01-0771774V02 |
White Tail Position / Anti-Collision Light Assembly, 28VDC
|
FAA TSO-C96a Class II / TSO-C30c Type III / STC |
Documents
