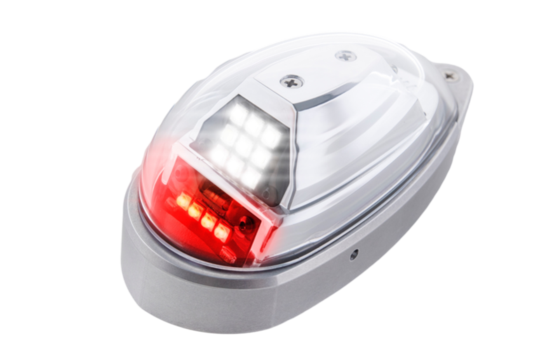

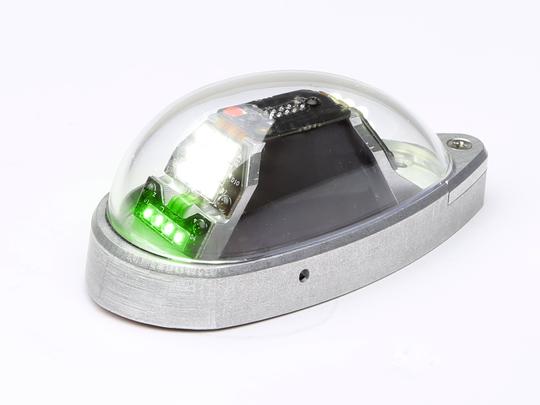

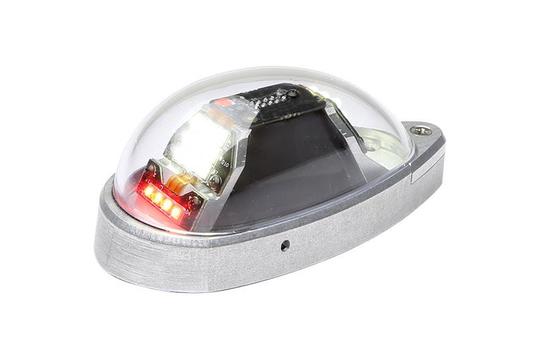

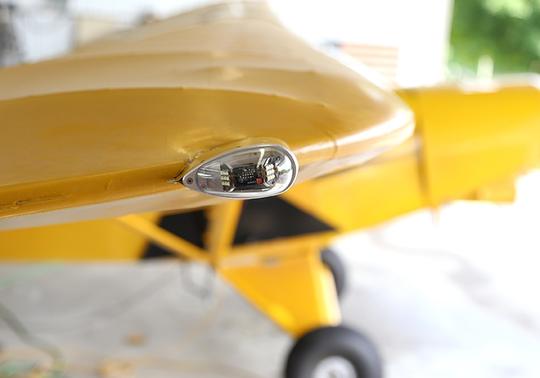

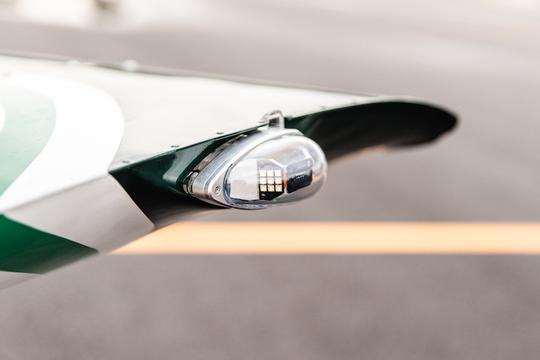

ORION 650 SERIES FORWARD POSITION / ANTI-COLLISION WINGTIP LIGHTS
$585.00
The Orion 650 series products incorporate RED or GREEN Forward Position Lights as well as the WHITE flashing Anti-Collision Light function. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO & STC approved.
Description
Tech Specs
- Drawing 90725
- Weight 0.26 lbs
- Current Draw 14V / 28V 0.30 / 0.15 Amps Position 0.70 / 0.35 Amps Avg. ACL
- Lenses Clear Hardcoated Polycarbonate
| Model | Part # | Description | Approvals | |
| OR6501G | 01-0790725-01 |
Green
Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC
|
FAA TSO-C96a Class III / TSO-C30c Type II | |
| OR6501R | 01-0790725-02 |
Red
Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC
|
FAA TSO-C96a Class III / TSO-C30c Type I | |
| OR6502G | 01-0790725-11 |
Green
Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC
|
FAA TSO-C96a Class III / TSO-C30c Type II | |
| OR6502R | 01-0790725-12 |
Red
Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC
|
FAA TSO-C96a Class III / TSO-C30c Type I |
Documents
